IPD60R180P7 TO-252 Integrated circuit chip IC brand new original unused

Brand Name : INFINEON

Model Number : IPD60R180P7

Place of Origin : original

MOQ : 1pcs

Payment Terms : D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 97830pcs

Delivery Time : 3

Packaging Details : 4000

quality： : Brand new unused

Package / box : TO-252

Stock : 8000+

Price : Negotiate

Contact Now

ISO9001.pdf

Application:
IPD60R180P7 is a 600V CoolMOS ™ P7 Power MOSFET is suitable for high-efficiency switching applications such as household appliances, industrial power supplies, LED lighting, etc. It can provide excellent performance such as low conduction and switching loss, high temperature capacity, and low EMI.
Conclusion:
IPD60R180P7 has the following advantages:
Low conduction and switching losses improve system efficiency;
High temperature capacity, capable of working in high-temperature environments;
Low EMI, reducing system electromagnetic interference;
High reliability, with characteristics such as long service life and high voltage resistance.
Parameters:
Rated voltage: 600V;
Rated current: 23A;
Dynamic resistance: 30m Ω;
Maximum drain capacitance: 780pF;
Typical opening time: 22ns;
Typical shutdown time: 49ns;
Maximum working temperature: 150 ℃.

Product Technical Specifications
EU RoHS Compliant with Exemption聽
ECCN (US) EAR99
Part Status Unconfirmed
SVHC Yes
SVHC Exceeds Threshold Yes
Automotive No
PPAP No
Product Category Power MOSFET
Configuration Single
Process Technology CoolMOS P7
Channel Mode Enhancement
Channel Type N
Number of Elements per Chip 1
Maximum Drain Source Voltage (V) 600
Maximum Gate Source Voltage (V) 20
Maximum Gate Threshold Voltage (V) 4
Maximum Continuous Drain Current (A) 18
Maximum Gate Source Leakage Current (nA) 1000
Maximum IDSS (uA) 1
Maximum Drain Source Resistance (mOhm) 180@10V
Typical Gate Charge @ Vgs (nC) 25@10V
Typical Gate Charge @ 10V (nC) 25
Typical Input Capacitance @ Vds (pF) 1081@400V
Maximum Power Dissipation (mW) 72000
Typical Fall Time (ns) 8
Typical Rise Time (ns) 12
Typical Turn-Off Delay Time (ns) 85
Typical Turn-On Delay Time (ns) 14
Minimum Operating Temperature (掳C) -55
Maximum Operating Temperature (掳C) 150
Packaging Tape and Reel
Mounting Surface Mount
Package Height 2.41(Max)
Package Width 6.22(Max)
Package Length 6.73(Max)
PCB changed 2
Tab Tab
Standard Package Name TO-252
Supplier Package DPAK
Pin Count 3
Pin Count 3
Supplier Package DPAK
Pin Count 3
Lead Shape Gull-wing

IPD60R180P7 TO-252 Integrated circuit chip IC brand new original unused Manufactures

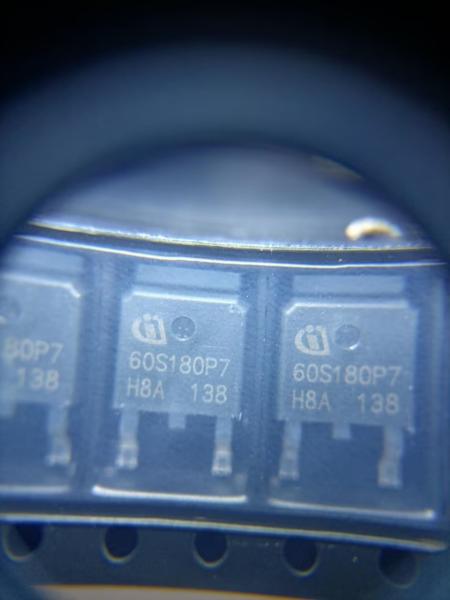

IPD60R180P7 TO-252 Integrated circuit chip IC brand new original unused Images
